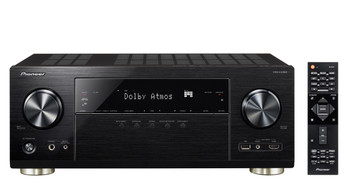

Pioneer VSX-LX302 Receiver Front
Zoom the image with the mouse

Pioneer VSX-LX302 - 7.2 Channel AV Receiver

Write a Review
$1,499.00 $1,249.00
(You save $250.00)
SKU:
VSXLX302
Availability:
In Stock
Weight:
10.00 KGS
Shipping:
Free Shipping
Request a Price




Contact us on 0438 851 797 for best pricing or request a price above

 7.2-Channel AV receiver, Ultra HD Upscaling/Pass-through,

Dolby Atmos, DTS:X, 7x HDMI, Wi-Fi & Bluetooth

Defy the limits of home cinema



7.2-channel receiver with 7x170 watts, full-range streaming, Dolby Atmos and dts:X, 4K Ultra HD, video scaler, 4 HDMI ports, HDCP 2.2, high resolution audio playback, dual-band WiFi & Bluetooth.

High-tech for film sound and music.

Pioneer’s discerning LX model family begins with the VSX-LX302. Its full range of features includes highly precise sound tuning, premium materials and components, and larger performance reserves – 170 watts for each of the seven integrated output stages in the VSX-LX302. The highly efficient Direct Energy architecture keeps electricity consumption low and ensures minimal heating of the receiver, even under high continuous loads.

For optimum home cinema performance, the VSX-LX302 has six HDMI inputs with full 4k support. Optimum room adjustment, even for large speaker sets, is accomplished easily and accurately thanks to microphone-assisted MCACC calibration with Phase Control and Subwoofer EQ. This benefits both cinema sound – naturally also in Dolby Atmos – and music that, thanks to comprehensive streaming with the VSX-LX302, is in virtually unlimited supply even without external players: Spotify, Tidal and Deezer are integrated, TuneIn provides an outstanding Internet radio selection, local music server access supports high-resolution audiophile formats and, for music from the smartphone, AirPlay and Bluetooth are available along with integrated Chromecast technology and PlayFi after a firmware update. No matter what your accustomed way of listening to music – with the VSX-LX302, there is no need to change your habits. Only the inspiring new quality may take some getting used to.

Audio Features

  • Channels: 7
  • Amplification Type: Direct Energy
  • 170 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
  • Dolby Atmos®/Dolby Surround
  • DTS:X/DTS Neural:X
  • Reflex Optimizer
  • Dolby® TrueHD/Dolby Digital Plus
  • DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS-HD Express
  • DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
  • Digital Core Engine with Cirrus Logic (Quad Core) x1
  • 384 kHz/32-bit DAC (AK4458)
  • HDMI Audio Return Channel (ARC)
  • MCACC Auto Room Tuning
    • Phase Control
    • Subwoofer EQ
  • Advanced Sound Retriever (2ch)
  • Advanced Surround Modes
    • Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
  • AM/FM Tuner 40 Presets

Video Features

  • Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
  • HDR10 and BT.2020 Support
  • Dolby Vision Compatible
  • Ultra HD Upscaling (1080p 4K)
  • 3D Ready (Blu-ray Disc™, Broadcast, and Games)
  • Deep Colour (36-bit), “x.v.Colour”

Network Features

  • Whole Home Audio with FireConnect
  • Chromecast built-in*
  • DTS Play-Fi* Ready
  • Apple AirPlay Certified
  • Spotify®, TIDAL, Deezer, and Pandora Music-Streaming Services Ready
  • Internet Radio with TuneIn
  • Hi-Res Audio File Playback via USB/Network
    • Up to 192 kHz/24-bit ALAC, AIFF , FL AC, WAV
    • 5.6/2.8 MHz DSD Playback (except via Wireless LAN)
    • Dolby® TrueHD Playback (via USB only)
  • Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
  • Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)

* Available with future firmware update

Operating Features

  • Works with Pioneer Remote App (iOS/Android) for Multi-room Entertainment Control and Network Streaming
  • GUI with System/Network Setup Menu
  • Auto Power Off in HDMI Standby Through
  • Sleep Timer
  • User-Friendly Simple Remote Control

Connections

Front Terminals

  • HDMI 1 In
  • USB 1 in for USB drive
  • MCACC Setup MIC In
  • Audio 1 In (Mini Stereo Jack)
  • Phones 1 Out

Rear Terminals

  • HDMI 6 In (4 Assignable)
  • HDMI 2 Out (1 for MAIN, 1 for SUB)
  • Ethernet 1 In
  • USB 1 In for USB Drive
  • AV (Component) 1 In (Assignable)
  • AV (Composite) 2 In (Assignable)
  • Audio 1 In (Assignable)
  • Phono (MM) 1 In
  • Digital Coaxial 1 In (Assignable)
  • Digital Optical 1 In (Assignable)
  • Subwoofer Pre Out
  • Zone 2 Pre/Line Out
  • Speaker 9 ch Out (FRONT , CENTRE, SURROUND, SURROUND BACK/ZONE 2/Bi-AMP, HEIGHT/SP B)
  • IR 1 In/1 Out
  • 12 V Trigger 2 Out/RS-232C
  • FM/AM Antenna

Dimensions & Weight

  • Dimensions (W x H x D): 435 x 173 x 370.5 mm
  • Weight: 10 kg
