Yamaha EXPAND WXC-50
Zoom the image with the mouse

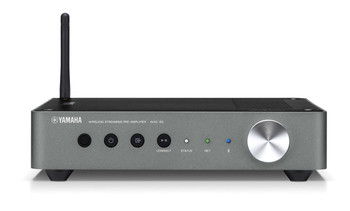

Yamaha EXPAND WXC-50 MusicCast Player

Write a Review

Contact us on 0438 851 797 for pricing or request a price below

Weight:
1.50 KGS
Request a Price

Simple and Flexible, for Ultimate Listening Freedom

Make your old hi-fi gear new again.

The WXC-50 goes beyond conventional audio thinking - allowing your existing audio equipment such as Amplifiers and AV Receivers to join the MusicCast Multi-Room audio system.

It lets you access a wide variety of audio content such as music from streaming services or stored on a smartphone, and enjoy high quality sound and style. Enjoy endless musical possibilities as your entire music collection can be streamed from room to room.

  • Use with a non-MusicCast amp/receiver to enjoy all the benefits of a MusicCast system
  • Compatible with all types of music sources and services such as streaming services
  • MusicCast app for easy operation. The app lets you also control other MusicCast-compatible components
  • One push play - pressing any button turns the unit on and initiates playback of the previously selected source
  • Retro modern design and superior quality
  • 48-bit digital volume control is far greater than the input signal bit resolution, achieving high quality control
  • Compact design measures only 214 mm wide and fits in any location - either horizontally or vertically
  • Easy installation - suitable size for 1U rack with a width of 214 mm and height of 42 mm (without feet)
  • Low standby power consumption: 1.92 W
  • Seamless link to Yamaha amp with Main In and Trigger In terminals for control of system power and volume
  • Player mode - turn off Pre Amp mode and use the device as a simple network audio player

Features

Use Your Favourite Audio Equipment with MusicCast

Even if your present Hi-Fi amp or AV receiver is not compatible with a network streaming or MusicCast, simply by adding the WXC-50, you can easily enjoy your favourite network audio or share to any other MusicCast multi-room audio speakers or components.



MusicCast

MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it’s completely up to you. Control it, all from one app, designed to be intuitive, quick and simple to use. Use a soundbar, a wireless speaker, an AV receiver, Hi-Fi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on. All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.



MusicCast Expands Entertainment Possibilities

MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. It can also share the music from external devices such as a TV or Blu-ray Disc™ player connected to the WXC-50. Audio content from Bluetooth®-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms.



Stream the Same or Different Music to Each Room

Play the same song in multiple rooms, or play different songs in each room. With MusicCast, freely enjoy the music you love anywhere in your home.



Enjoy All Music Sources and Components

The WXC-50 is compatible with all types of music sources and services, such as streaming services. Provided with various types of terminals for connecting a TV, CD player, computer and other AV equipment, you’ll be able to enjoy music from around the world throughout your home from just one component.



Stream via Bluetooth® or AirPlay®

You can hear all the music sources from your smartphone via wireless Bluetooth or AirPlay connection. You can play music from music apps, radio apps, or YouTube™-type video hosting services.



Easy Setup with Your Smartphone or Tablet



Use your smartphone or tablet together with the MusicCast CONTROLLER App to operate the speaker and change settings quickly and easily. The same Controller app functions as a remote control for all your MusicCast-compatible devices too.

One Push Play

Pressing any button on the front panel turns the unit on and initiates playback of the previously selected source. Quick and easy access to your favourite music.



Six Preset Buttons on the Remote Control



Set the six numbered buttons on the remote control for your favourite network / USB sources, such as internet radio stations, NAS or USB stick albums or songs, then just press a button to instantly hear that station or song.

Retro Modern and Superior Quality

The simple design creates a stylish musical space and integrates beautifully with your audio system. With a high quality metal body and cool two-tone colouring, Yamaha’s fastidiousness extends to the exterior, for a completely enjoyable listening experience.



Put it Anywhere, Any Style

Only 214 mm (8-3/8") wide, the compact body fits neatly in any space without drawing attention to itself. You can chose any convenient location, placing it horizontally or vertically, on its own or with other audio components.



Seamless Linkage to Yamaha Hi-Fi

Connect the WXC-50 to a Yamaha amplifier equipped with MAIN IN and Trigger In terminals and you can use it to control system power and volume. Using the WXC-50’s remote control or app makes system operation more convenient.



Luxurious Sound, All the Time

Thanks to Yamaha’s superior sound processing technologies, you’ll enjoy great sound from all your music sources — no matter what their quality, or your listening environment, or the kind of speakers you’re using. When listening to audio from smartphones or other compressed sources, the Compressed Music Enhancer greatly improves the sound at all frequency levels. Volume-adaptive EQ automatically adjusts the bass / treble balance according to the volume level. Advanced Bass Extension provides a deeper, richer low-end sound — it’s great for compact or in-wall speakers. And a Direct Mode allows you to play back high-resolution audio sources just as they are without any processing.



High Level Technologies for High Quality Sound

The WXA-50 reaps the benefits of Yamaha’s advanced audio technologies and circuit designs. The preamp circuitry, for example, minimises digital jitter and uses the same high performance ESS DAC that is found in high-end AV receivers. Yamaha’s proprietary power supply ground configuration, called DAC on Pure Ground, ensures that the power supply will never negatively affect sound quality. The 48-bit digital volume control provides much greater precision and quality that conventional digital or analogue controls. In addition, a highly rigid, metal chassis supplies the stability necessary for powerful, clear music reproduction.



Player mode

If you want to adjust the volume from the Hi-Fi amp or AV receiver, the WXC-50 allows you to turn off PRE AMP mode and use the device as a simple network audio player. Switching to Player mode bypasses the volume and any processing for direct playback of high-resolution audio.



Low Power Consumption



The WXC-50 consumes less than two watts of power in standby mode, When the power is on, power consumption is still a low 5W, and even when used for long periods, power consumption is environmentally friendly. In addition, the Auto Power Down lets you save energy by having the power automatically turned off after 2, 4, 8 or 12 hours.

Easy Installation

The WXC-50 offers various custom installation functions, so by using several units it’s easy to create an extensive home audio system.


Suitable Size for 1U Rack



With a width of 214 mm (8-3/8") and height of 42 mm (1-5/8") (without feet), this component will fit easily into a 1U (19-inch) rack.

Professional Functionality



- Flexible Trigger In / Out setup - Wired LAN connectivity - Wireless Off function - Web setup compatibility



Specs

Wireless Streaming Amplifier

Network sectionDLNA Version 1.5
File Format MP3, WMA, MPEG4 AAC, WAV, FLAC, AIFF, ALAC, DSD
Wi-Fi Yes
AirPlay Yes
Bluetooth Yes (SBC / AAC)
Pure Direct Yes
Total Harmonic Distortion (20 Hz-20 kHz) 0.003 % (Pre out)
Signal-to-Noise Ratio 112 dB (Opt / Net / USB / Bluetooth in) / 98 dB (AUX in)
Audio In / Out 1 / 1
Digital In / Out 1 (Optical) / 1 (Optical, Coaxial)
USB Input 1
Ethernet 1
Pre Out 1
Subwoofer Out 1
Remote In / Out 1 / 0
Control (Trigger) In / Out 1 / 1
Standby Power Consumption 1.92 W
Dimensions (W x H x D) 215 x 51.5 x 245.9 mm (with antenna: 214 x 123.6 x 245.9 mm)
Weight 1.44 kg
